ADSS（All Dielectric Self-supporting Aerial Cable）
- PRODUCT DETAIL
Double Protector ADSS

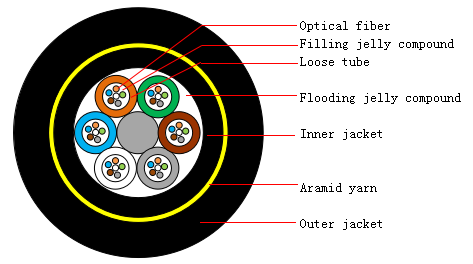

Product Structure:
Product Description:
Double protector ADSS (Loose tube stranding, Non-metalstrength member, Flooding jelly compound, PE inner sheath, Aramid yarn strengthmember, PE outer sheath)
Standards:
GB T18899-2002All dielectric Self-Supporting optical cable
Technical Parameters(Typical Value):
|
Fiber Count |
Structure |
Diameter (mm) |
Weight (kg/km) |
Working Tension (Max ) (KN) |
Nominal Tensile Strength (KN) |
Crush(N) Long Short term term |
Bending Radius(mm) Static Dynamic |
||
|
2-30 |
1+6 |
11. 9 |
117 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
32-36 |
1+6 |
11. 9 |
117 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
38-60 |
1+6 |
12.4 |
127 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
62-72 |
1+6 |
12.4 |
128 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
74-84 |
1+7 |
13.0 |
144 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
86-96 |
1+8 |
14.0 |
162 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
98-108 |
1+9 |
14.7 |
177 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
110-120 |
1+10 |
15. 5 |
196 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
122-132 |
1+11 |
16. 1 |
211 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
|
134-144 |
1+12 |
16. 7 |
229 |
4.0 |
15 |
1000 |
3000 |
12.5D |
25D |
Note
1.D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands.
