GYFTA53

Category: Armored Buried Fiber Optic Cable
Product Manual:GYFTA53 (Loosetube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethyleneadhesive inner sheath, Steel-polyethylene adhesive outer sheath)

  • PRODUCT DETAIL

GYFTA53

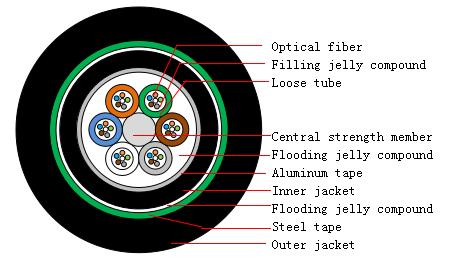

Product Structure:


Product Description:

GYFTA53 (Loosetube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethyleneadhesive inner sheath, Steel-polyethylene adhesive outer sheath)

Standards:

YD/T 901-2009Outdoor layer stranded optical cable for telecommunications

Technical Parameters(Typical Value):

Fiber Count

Structure

Diameter

(mm)

Weight (kg/km)

Tensile(N)

Long    Short term    term

Crush(N)

Long    Short term    term

Bending Radius(mm)

Static  Dynamic

2-30

1+6

13.8

176

1000

3000

1000

3000

12.5D

25D

32-36

1+6

13.8

176

1000

3000

1000

3000

12.5D

25D

38-60

1+6

14.7

198

1000

3000

1000

3000

12.5D

25D

62-72

1+6

14.8

199

1000

3000

1000

3000

12.5D

25D

74-84

1+7

15. 2

212

1000

3000

1000

3000

12.5D

25D

86-96

1+8

16. 1

233

1000

3000

1000

3000

12.5D

25D

98-108

1+9

17. 0

257

1000

3000

1000

3000

12.5D

25D

110-120

1+10

17. 7

278

1000

3000

1000

3000

12.5D

25D

122-132

1+11

18. 5

304

1000

3000

1000

3000

12.5D

25D

134-144

1+12

19. 2

326

1000

3000

1000

3000

12.5D

25D

Note 1.D refers to the cable diameter;

2.The relevant technical Parameters canbe adjusted according to the customer’s demands;

3.The block water way can be adjustedaccording to the customer’s demands;

4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
