GYTS
Product Structure:
GYTS outdoor fiber optic cable is used for duct and aerial applications. GYTS fiber optic cable has improved the communication effectiveness across the urban areas. Widely, GYTS fiber optic cable is found in two forms; Single mode GYTS fiber and multimode GYTS fiber optic cable.

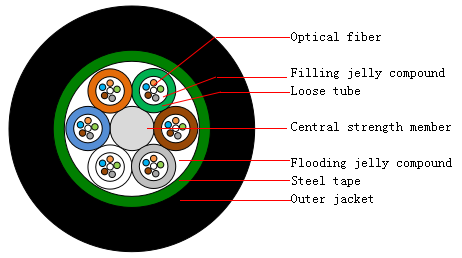

Structure:
2~144 fibers central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer steel tape, PE outer sheath. G652D SM fiber, detailed specification at your request.
Features of GYTS fiber optic cable
1. The loose tube stranding technology ensures the fibers good secondary excess length and allow
2. The fibers free movement in the tube keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and PE outer sheath provide the properties of crush resistance and gunshot resistance.
4. Metal strength member provides excellent strain performance.
5. Low dispersion and attenuation
6. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
7. The armoring of corrugated steel tape makes cable have nice properties of moisture resistance and crush resistance
Applications of GYTS fiber optic cable
These corrugated steel tape armored cables are suitable for installation in aerial or duct environment for long haul communication, LAN, especially suitable for the situation of high requirements to lateral pressure resistance.
Laying modes: Aerial & Conduit
Long-distance communication, local trunk line, CATV & computer networks system
Our Service:
1.Only producing grade A quality fiber optic cable
2.Shipping after payment, door to door service, 7 Days Delivery Time
3.We are specializing in all kinds of fiber optic cable and related hardware, such as ADSS, OPGW, FTTH and so on. The company has achieved quality certificate ISO9001.
1.Only producing grade A quality fiber optic cable
2.Shipping after payment, door to door service, 7 Days Delivery Time
3.We are specializing in all kinds of fiber optic cable and related hardware, such as ADSS, OPGW, FTTH and so on. The company has achieved quality certificate ISO9001.
Technical Parameters(Typical Value):
|
Fiber Count |
Structure |
Diameter (mm) |
Weight (kg/km) |
Tensile(N) Long Short term term |
Crush(N) Long Short term term |
Bending Radius(mm) Static Dynamic |
|||
|
2-30 |
1+5 |
9. 2 |
88 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
32-36 |
1+6 |
9. 6 |
104 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
38-60 |
1+5 |
9. 9 |
100 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
62-72 |
1+6 |
10. 6 |
127 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
74-84 |
1+7 |
11. 5 |
140 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
86-96 |
1+8 |
12.2 |
153 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
98-108 |
1+9 |
12.9 |
169 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
110-120 |
1+10 |
13.6 |
185 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
122-132 |
1+11 |
14.2 |
199 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
134-144 |
1+12 |
15. 0 |
218 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
146-216 |
1+6+12 |
14.9 |
230 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
218-288 |
1+9+15 |
16. 9 |
289 |
600 |
1500 |
300 |
1000 |
10D |
20D |
Note
1. D refers to the cable diameter;
2.The relevant technical Parameters canbe adjusted according to the customer’s demands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
