GDJXH
- PRODUCT DETAIL
Photo electric Composite Optical Cable Product
Applications:
Telecommunication Network Construction and Communication Base Station Construction in Remote Areas of Rural and Urban Areas;
Security Monitoring Project.
Characteristics:
Provide a variety of transmission technology, high adaptability, strong scalability, wide range of products;
Providing high-speed data transmission and solving the problem of equipment power consumption in network construction.
Operating Temperature:-20℃～﹢60℃
Transmission Performance
|
The Type Of The Fiber
|
62.5μm（OM1）
850nm/1300nm
|
50μm（OM2）
850nm/1300nm
|
50μm（OM3）
850nm/1300nm
|
SM
1310nm/1550nm
|
|
Attenuation Of Maximum Value(dB/km)
|
3.5/1.5
|
3.5/1.5
|
3.5/1.5
|
0.4/0.3
|
|
Attenuation Of Typical Value(dB/km)
|
3.5/1.5
|
3.0/1.0
|
3.0/1.0
|
0.38/0.25
|
Note:Other types of fiber can be provided according to the customer’s demands.
GDJXH

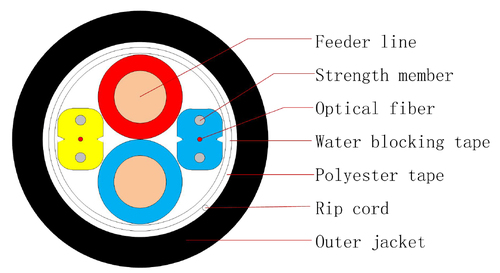

Product Structure:
Product Description:
GDJXH（Twisted structure，LSZH sheath）
Standards:
YD/T 2159-2010 Optical and electrical hybrid cables for access network
Technical Parameters(Typical Value):
|
Fiber Count
|
Conductor size
(mm)
|
Diameter（mm）
|
Weight (kg/km)
|
Crush(N)
|
Bending Radius(mm)
|
Fiber Count
|
|
|
|
|
|
|
|
|
Long term
|
Short term
|
Long term
|
Short term
|
Static
|
Dynamic
|
|
2
|
2*1.5
|
8.5
|
96
|
1000
|
400
|
1000
|
300
|
10D
|
20D
|
|
4
|
2*1.5
|
8.5
|
96
|
1000
|
400
|
1000
|
300
|
10D
|
20D
|
|
8
|
2*1.5
|
8.5
|
96
|
1000
|
400
|
1000
|
300
|
10D
|
20D
|
Note1.D refers to the cable diameter;
2.The relevant technical Parameters can be adjusted according to the customer’s demands;
3.The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.
