GDTA
- PRODUCT DETAIL
GDTA

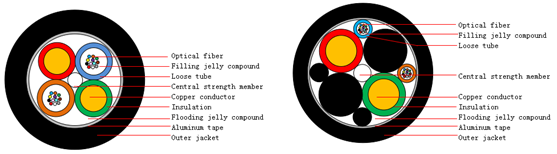

Product Structure:
Product Description:
GDTA(Loose tubestranding, Metal strength member, Flooding jelly compound,Aluminum-polyethylene adhesive sheath)
Standards:
YD/T2159-2010 Opto electric composite cablefor telecommunications
Technical Parameters(Typical Value):
|
Fiber Count |
Conductor Specifications |
Structure |
Diameter (mm) |
Weight (kg/km) |
Tensile(N) Long Short term term |
Crush(N) Long Short term term |
Bending Radius(mm) Static Dynamic |
|||
|
24 |
2×1. 0 |
1+6 |
12.4 |
155 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
24 |
2×1. 5 |
1+6 |
14.0 |
196 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
24 |
2×2.5 |
1+4 |
13.8 |
238 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
24 |
2×4.0 |
1+4 |
14.9 |
298 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
24 |
2×6. 0 |
1+4 |
16. 3 |
377 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
24 |
2×10. 0 |
1+4 |
19. 6 |
574 |
600 |
1500 |
300 |
1000 |
10D |
20D |
|
24 |
2×16. 0 |
1+4 |
22.2 |
793 |
600 |
1500 |
300 |
1000 |
10D |
20D |
Note 1.D refers to the cable diameter;
2.Therelevant technical Parameters can be adjusted according to the customer’sdemands;
3.The block water way can be adjustedaccording to the customer’s demands;
4.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
